웹개발자의 기지개

안드로이드 입문 연습문제 3문항 - CheckBox, RadioButton, EditText, Spinner, 이벤트연습 본문

안드로이드

안드로이드 입문 연습문제 3문항 - CheckBox, RadioButton, EditText, Spinner, 이벤트연습

http://portfolio.wonpaper.net 2019. 11. 30. 12:41

안드로이드 강의시간에 문제로 깔끔하게 나왔던 3문항을 입문 연습문제로 정리해 보았다.

문제 초기화면

전체 3문항을 MainActivity.java 에 초기 화면으로 버튼 3개로 배치하고 각각 클릭시 각각 새로운 Activity 가 열리면서 각 문제별로 처리되도록 하였다. 물론 팝업되는 각 Activity 마다에는 창닫기 버튼을 올려놓았다.

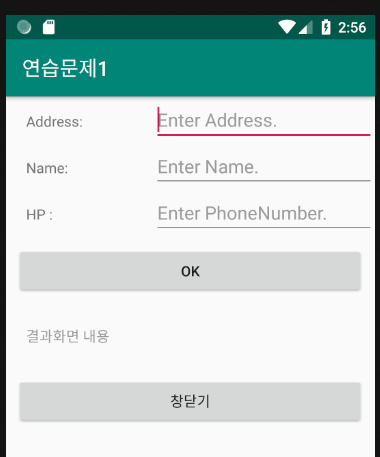

각각의 내용을 입력하면 '결과화면 내용' 부분에 String 형식으로 한꺼번에 화면에 보여준다.

이때에

Address 는 최대글자 50자까지

Name 은 최대 20자까지

HP는 20자까지 글자제한에 숫자만 입력하도록 한다.

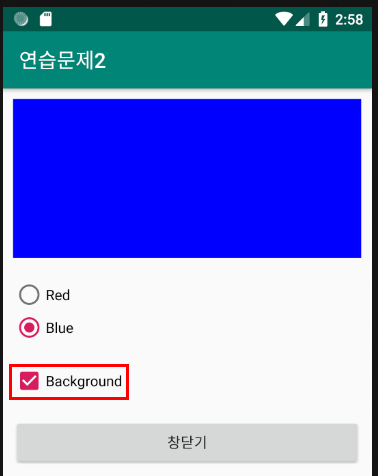

문제2 왼쪽 그림과 같이 RadioButton 과 CheckBox 의 사용법이다. 각 항목을 클릭하면 TextView 의 글자색과 Background 배경색이 그 글자색에 따라 배경색도 변한다.

Background CheckBox 의 클릭상태를 해제하면 최초 흰배경색으로 바뀐다.



3번문제는 Spinner 의 사용법이다. Html 상의 Select박스와 같은 놈인데, 5개의 아이템을 넣어서 ImageView 와 연결하여 각각 이미지를 교체하도록 한다.

[ activity_main.xml ] - 초기화면 디자인

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <Button
        android:id="@+id/button1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="20dp"
        android:text="1번 문제" />

    <Button
        android:id="@+id/button2"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="20dp"
        android:text="2번 문제" />

    <Button
        android:id="@+id/button3"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="20dp"
        android:text="3번문제"/>



</LinearLayout>
 cs

[ MainActivity.java ]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
public class MainActivity extends AppCompatActivity {
    Button button1,button2,button3;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        setTitle("안드로이드 입문 연습문제");

        button1 = findViewById(R.id.button1);
        button2 = findViewById(R.id.button2);
        button3 = findViewById(R.id.button3);

        button1.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Intent intent = new Intent(getApplicationContext(),Exam1Activity.class);
                startActivity(intent);
            }
        });

        button2.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Intent intent = new Intent(getApplicationContext(),Exam2Activity.class);
                startActivity(intent);
            }
        });

        button3.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Intent intent = new Intent(getApplicationContext(),Exam3Activity.class);
                startActivity(intent);
            }
        });


    }
}
 cs

[ activity_exam1.xml ] - 1번문제 디자인

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".Exam1Activity">

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <TextView
            android:id="@+id/textView1"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.4"
            android:paddingLeft="20dp"
            android:text="Address:"/>

        <EditText
            android:id="@+id/address"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.6"
            android:hint="Enter Address."
            android:maxLength="50" />
    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <TextView
            android:id="@+id/textView2"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.4"
            android:paddingLeft="20dp"
            android:text="Name:"/>

        <EditText
            android:id="@+id/name"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.6"
            android:maxLength="20"
            android:hint="Enter Name."/>
    </LinearLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">
        <TextView
            android:id="@+id/textView3"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.4"
            android:paddingLeft="20dp"
            android:text="HP :"/>

        <EditText
            android:id="@+id/hp"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="0.6"
            android:maxLength="20"
            android:inputType="number"
            android:hint="Enter PhoneNumber."/>
    </LinearLayout>

    <Button
        android:layout_margin="10dp"
        android:id="@+id/Exam1Button"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="OK"/>

    <TextView
        android:id="@+id/Exam1Text"
        android:layout_margin="20dp"
        android:hint="결과화면 내용"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

    <Button
        android:layout_margin="10dp"
        android:id="@+id/Exam1Close"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="창닫기"/>

</LinearLayout>
 cs

[ Exam1Activity.java ]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
public class Exam1Activity extends AppCompatActivity {
    Button Exam1Button,Exam1Close;
    EditText address,name,hp;
    TextView Exam1Text;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_exam1);
        setTitle("연습문제1");

        address = findViewById(R.id.address);
        name = findViewById(R.id.name);
        hp = findViewById(R.id.hp);

        Exam1Text = findViewById(R.id.Exam1Text);
        Exam1Button = findViewById(R.id.Exam1Button);
        Exam1Close = findViewById(R.id.Exam1Close);

        Exam1Button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                String str = "";
                str += "Address : " + address.getText().toString() + "\n";
                str += "Name : " + name.getText().toString() + "\n";
                str += "HP : " + hp.getText().toString() + "\n";

                Exam1Text.setText(str);

                address.setText("");
                name.setText("");
                hp.setText("");
            }
        });

        Exam1Close.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                finish();
            }
        });
    }
}
 cs



[ activity_exam2.xml ] - 2번문제 디자인

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".Exam2Activity">

    <TextView
        android:id="@+id/exam2TextView1"
        android:layout_width="match_parent"
        android:textSize="32dp"
        android:layout_margin="10dp"
        android:layout_height="wrap_content"/>

    <RadioGroup
        android:id="@+id/radioGroup1"
        android:layout_margin="10dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content">
        <RadioButton
            android:id="@+id/radioButton1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:checked="true"
            android:text="Red"/>
        <RadioButton
            android:id="@+id/radioButton2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Blue"/>

    </RadioGroup>

    <CheckBox
        android:id="@+id/checkBox1"
        android:layout_margin="10dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Background"/>

    <Button
        android:id="@+id/exam2Close"
        android:layout_margin="10dp"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="창닫기"/>

</LinearLayout>
 cs

[ Exam2Activity.java ]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
public class Exam2Activity extends AppCompatActivity {
    TextView exam2TextView1;
    RadioGroup radioGroup1;
    RadioButton radioButton1, radioButton2;
    CheckBox checkBox1;
    Button exam2Button;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_exam2);
        setTitle("연습문제2");

        exam2TextView1 = findViewById(R.id.exam2TextView1);
        radioGroup1 = findViewById(R.id.radioGroup1);
        radioButton1 = findViewById(R.id.radioButton1);
        radioButton2 = findViewById(R.id.radioButton2);
        checkBox1 = findViewById(R.id.checkBox1);

        exam2Button = findViewById(R.id.exam2Close);

        String str = "Only I can change my life. \nNo one can do it for me.";
        exam2TextView1.setText(str);

        radioGroup1.setOnCheckedChangeListener(new RadioGroup.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(RadioGroup group, int checkedId) {
                switch (checkedId) {
                    case R.id.radioButton1 :
                        exam2TextView1.setTextColor(Color.RED);
                        break;
                    case R.id.radioButton2 :
                        exam2TextView1.setTextColor(Color.BLUE);
                        break;
                }
            }
        });

        checkBox1.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (((CheckBox)v).isChecked()) {

                    if (exam2TextView1.getCurrentTextColor() == Color.RED) {
                        exam2TextView1.setBackgroundColor(Color.RED);
                    } else if (exam2TextView1.getCurrentTextColor() == Color.BLUE) {
                        exam2TextView1.setBackgroundColor(Color.BLUE);
                    } else {
                        exam2TextView1.setBackgroundColor(exam2TextView1.getCurrentTextColor());
                    }
                } else {
                    exam2TextView1.setBackgroundColor(Color.WHITE);
                }
            }
        });

        exam2Button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                finish();
            }
        });
    }
}
 cs

[ activity_exam3.xml ] - 3번 문제 디자인

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".Exam3Activity">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="10dp"
        android:text="Choose a animal."/>

    <Spinner
        android:id="@+id/spinner1"
        android:layout_margin="10dp"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

    <ImageView
        android:id="@+id/imageView1"
        android:layout_gravity="center"
        android:scaleType="fitXY"
        android:layout_width="300dp"
        android:layout_height="300dp"/>

    <Button
        android:id="@+id/exam3Close"
        android:layout_margin="10dp"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="창닫기"/>

</LinearLayout>
 cs

[ Exam3Activity.java ]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
public class Exam3Activity extends AppCompatActivity {
    String[] animalsArr = {"고양이","개","강아지","소","토끼"};
    int[] imageArr = {R.drawable.animal1,R.drawable.animal2,R.drawable.animal3,R.drawable.animal4,R.drawable.animal5};

    Spinner spinner1;
    Button exam3Close;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_exam3);
        setTitle("연습문제3");

        spinner1 = findViewById(R.id.spinner1);
        ArrayAdapter<String> adapter = new ArrayAdapter<String>(getApplicationContext(),android.R.layout.simple_spinner_dropdown_item,animalsArr);
        spinner1.setAdapter(adapter);

        final ImageView imageView1 = findViewById(R.id.imageView1);
        spinner1.setOnItemSelectedListener(new AdapterView.OnItemSelectedListener() {
            @Override
            public void onItemSelected(AdapterView<?> parent, View view, int position, long id) {
                //Toast.makeText(getApplicationContext(),Integer.toString((position + 1)) + "번째 이미지입니다.",Toast.LENGTH_SHORT).show();
                Toast.makeText(getApplicationContext(),animalsArr[position] + "의 이미지입니다.",Toast.LENGTH_SHORT).show();
                imageView1.setImageResource(imageArr[position]);
            }

            @Override
            public void onNothingSelected(AdapterView<?> parent) {

            }
        });

        exam3Close = findViewById(R.id.exam3Close);
        exam3Close.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                finish();
            }
        });
    }
}
 cs







3번문제의 5개의 이미지를 /res/drawable/ 안에 복사,붙여넣기 해두었다.

'안드로이드' 카테고리의 다른 글

이미 버전 코드가 1인 APK 또는 Android App Bundle 이 있으므로 다른 버전 코드를 사용해야 합니다.  (0) 2019.12.25
안드로이드 앱배포하기 apk 만들기  (0) 2019.12.24
네비게이션 드로어 (Navigation Drawer) 를 활용하여 슬라이드 메뉴 만들기 1  (0) 2019.11.26
스피너(Spinner) 와 다이얼로그 대화창 (AlertDialog) 연습1  (0) 2019.11.21
ListView 리스트뷰 연습2 - 동적으로 아이템 추가 삭제  (0) 2019.11.19
'안드로이드' Related Articles more
Comments
